Paper label inspection counter rewinding machine
Paper label inspection counter rewinding machine .With electronic magnifier for better inspection while rewinding counting labels.
Details
Sheet screen printing machine
Semi-automatic screen printing machine, with servo motor driving , High-quality and precise lift motor for accurate printing and alignment.
Details
Narrow web rewinding machine
New designed rewinding machine with web guide device to ensure rewinding straightly . Auto air shaft with easy start up button.
Details
- [ 04 / 29 ]Customer visiting during the first week of May
- [ 02 / 26 ]SINA LABEL 2024
- [ 02 / 03 ]China New Year
RFID Screen Printing Machine
Brand:
LingtieItem NO.:
LTA-5070Payment:
T/T , T/C, Pay pal, Western Union...Market Price:
$38000Shipping Port:
Xiamen,ChinaLead Time：
15 days after receiving 30% advance paym
Quick Details
|
Warranty: |
1 year |
Color & Page: |
Single Color/multi color |
|
Certification: |
SGS CE ISO9001 |
Usage: |
Paper Printer, Label Printer, Card Printer, Tube Print |
|
Plate Type: |
Screen Printer |
Applicable Industry: |
Garment Shops, Building Material Shops... |
|
Key Selling Point: |
High-accuracy |
Automatic Grade: |
Automatic |
|
Voltage: |
220 |
Place of Origin: |
Fujian, China |
|
Printing color: |
Multi Colors |
Printing speed: |
0-6000T/h |
|
Brand Name: |
LINGTIE |
After-sales Service: |
Online support, Video technical support, Field installation |
|
Weight: |
600KG |
Max.paper width: |
520mm |
Packaging & Delivery
Packing: seaworthy suitable packing for long distance
Supply Ability:20 Set/Sets per Month
Lead Time :
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | in15 days | To be negotiated |
RFID Antenna Screen Printing Machine
This machine is used to print RFID antenna on PET film in roll form.
It is an automatic printing line composed of a feeder, a printing unit and a hot air dryer, UV dryer is available for option.
The machine is equipped an automatic register system with 3 sensors, it ensures the machine capable of doing overprint in high accuracy.
Making the antenna by screen will not cause pollution to water.
Roll to Roll Heat Transfer Printing Machine LTA-5070
|
Model No. |
LTA-5070 |
|
|
Screen Frame Area |
800x1100mm |
|
|
Max. Print Area |
500x700mm |
|
|
Max. Paper Width |
520mm |
|
|
Printing Speed |
0-6000 print/min. |
|
|
Power |
Main Drive Motor |
0.75kw |
|
Pulling Drive Motor |
1.5kw |
|
|
Air Suction Motor |
0.3kw |
|
|
UV Dryer for Option |
4.8kw/pc | |
|
Machine Weight |
Net Weight |
1000kg |
|
Gross Weight |
1200kg |
|
|
Supply Voltage |
220V 15A(single-phase power) /380v 3 Phase |
|
|
Remark: can be changed with your need |
||
|
Machine Size |
L2850 x W1160 x H1650 mm |
|
|
Measurement |
L3000 x W1365 x H1800 mm |
|

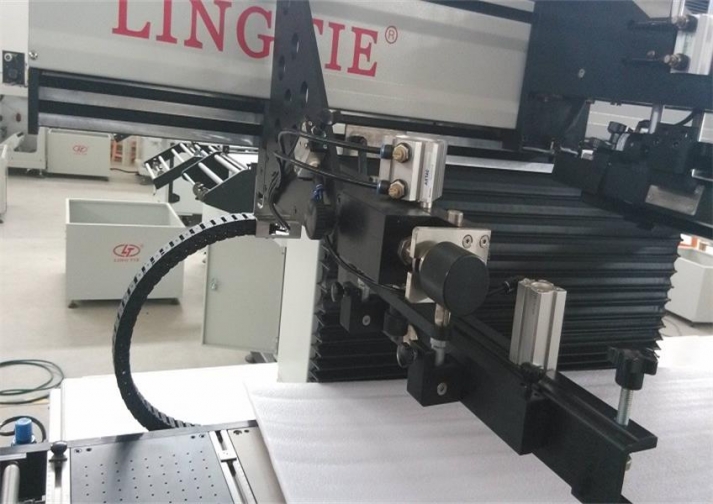

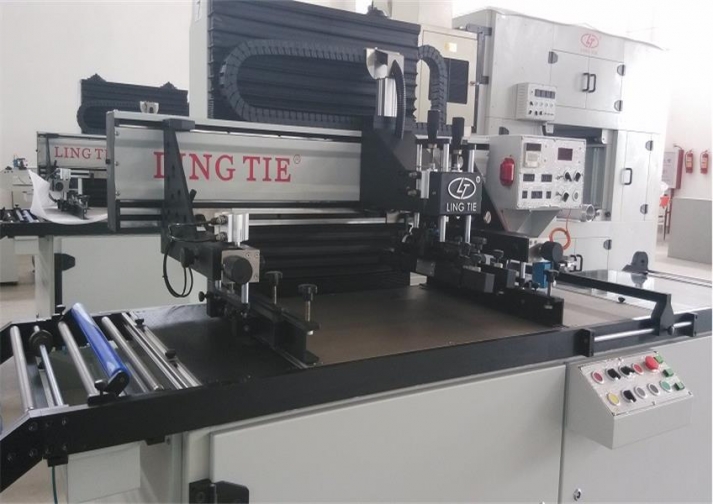

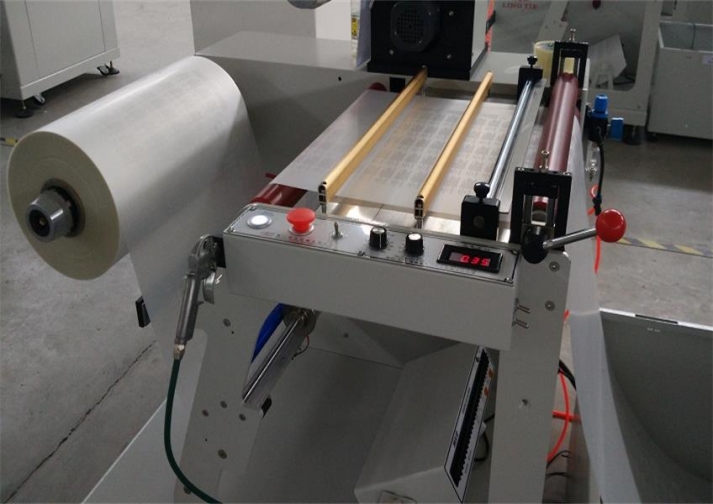

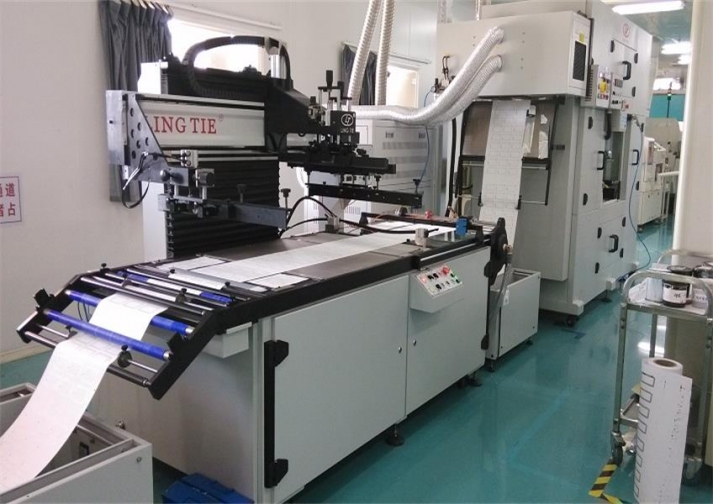

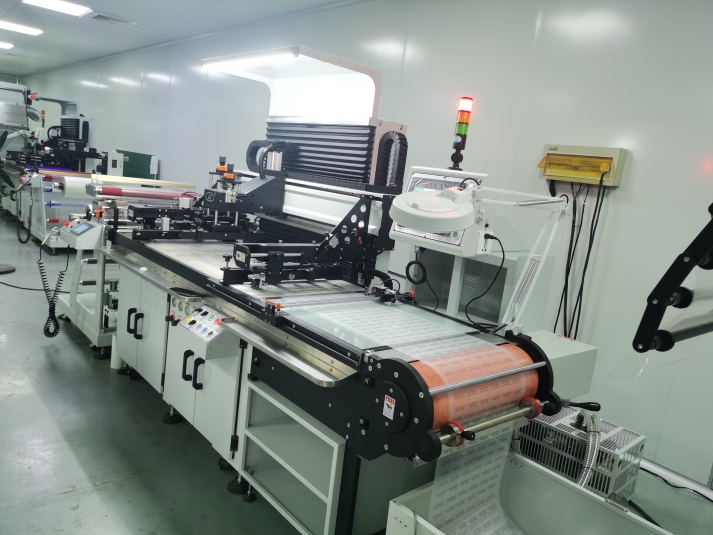

Machine Photo:
Printed Sample:
Machine Package:
Company Information:
Lingtie (Xiamen) Machinery Co., Ltd. is located in Xiamen City, Fujian Province, China. We're the top and outstanding manufacturer of automatic roll to roll screen printing machine in China. By focusing on the research and development of automatic roll to roll screen printing machine for 12 years, we have built us favorable advantages and rich experience in this field.
Our automatic roll to roll screen printing machines have been widely used in printing heat transfer films (PE/PVC/PE/PET/PP/BOPP), labels and stickers, IMD, IML, RFID, FPC, nameplates, membrane switches, non-woven fabric, etc.
In the past 20 years, we constantly improve our technology to meet domestic and foreign customer needs. Have exported to Hungary, India, Turkey, Iran, Vietnam, Korea and Singapore, etc. Good product and good service are what we are doing all the way. Contact us today to access excellent automatic roll to roll screen printing machines.
Our Team and Customer:
Contact:
Name: Fancy
Mobile: 86-18965820062
Wechat: wx18965820062
Fax: 86-592-6222510
Email:fany@lt-xm.com
Skype: lingtiexm
-
Roll to Roll Screen Printing Machine
This is specially-designed web-fed screen printing machine for flexible stock, in a roll such as RFID, Electronics-FCB (Flexible Circuits Board), Membrane Switch, IMD and Diffusers, Heat transfer paper/film, rubber vulcanization, Stickers, OPP, PVC, PC, PET, Plastic Leather, Aluminum Foil and so on.
-
PET Film Screen Printing Machine
Find here the PET Film Screen Printing Machine which provides high-quality printed product to help any silk screen printing company the high demands to come true.
-
Heat Transfer Label Screen Printing Machine
The Cost-optimal Heat Transfer Label Screen Printing Machine comes from the Lingtie (Xiamen ) Machinery manufacturer, it has 15 years of professional printing experience.
-
Roll Screen Printing Machine Samples
All of the Samples come from the customer's factory, and we could send all kinds of samples to you if possible.
-
Automatic Roll to Roll Screen Printing Machine
The web-fed roll to roll screen printing press with powder machine widely applied in Non-woven fabric and garments industry.
-
Reel to Reel Screen Printing Machine
The LTA-3040 reel-to-reel screen printing machine is not only maintained high-precision (0.01mm) multi-color overprinting technology and high quality but also the lower price.
