Automatic Roll Film Laser Marking Rewinder for Variable Traceability QR Code

Roll to Roll Laser Marking Rewinding Machine | Automatic Unwind Rewind Laser Engraver for Label Film QR Anti-counterfeit Traceability Code Printing

Brand:
Lingtie
Item NO.:
LTD-450C
Payment:
FOB Xiamen
Product Origin:
Xiamen
Color:
silver white
Shipping Port:
xiamen，China
Lead Time：
15days

contact now

Product Detail

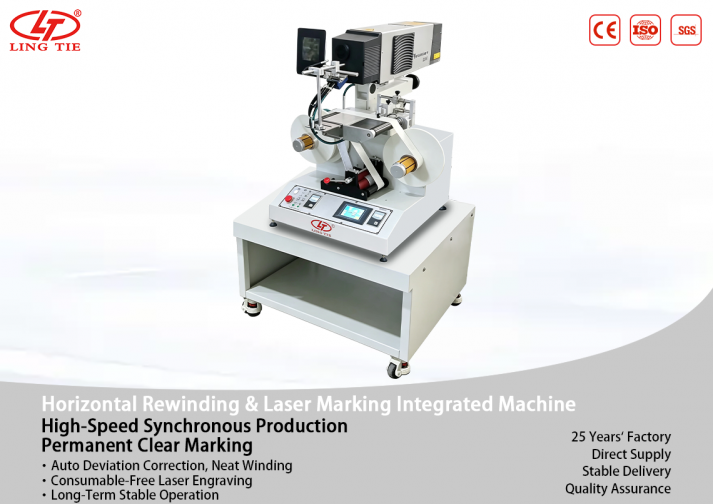

Roll-to-Roll Laser Marking Rewinding Machine Product Introduction

Product Overview

This integrated roll-to-roll laser marking and rewinding machine independently developed by LING TIE perfectly combines high-precision laser engraving and automatic material unwinding & rewinding functions. It is specially designed for batch coding, anti-counterfeiting marking and traceability code printing on roll films, PVC sheets, label rolls and other coiled flexible materials, widely applied in electronics, packaging, medical supplies, auto parts and daily consumer goods industries.

Model
LTD-450C
LTD-550C

Unwind diameter mm 400 500

Rewind diameter mm 400 500

Core diameter mm 76/50/38/25 for option 76/50/38/25 for option

Speed m/min. 0-100 0-100

Load capacity kg 30 30

Voltage kw 0.2 0.2

Tension N 12 12

Machine weight kg 80 90

Machine size mm 900550850 960550900

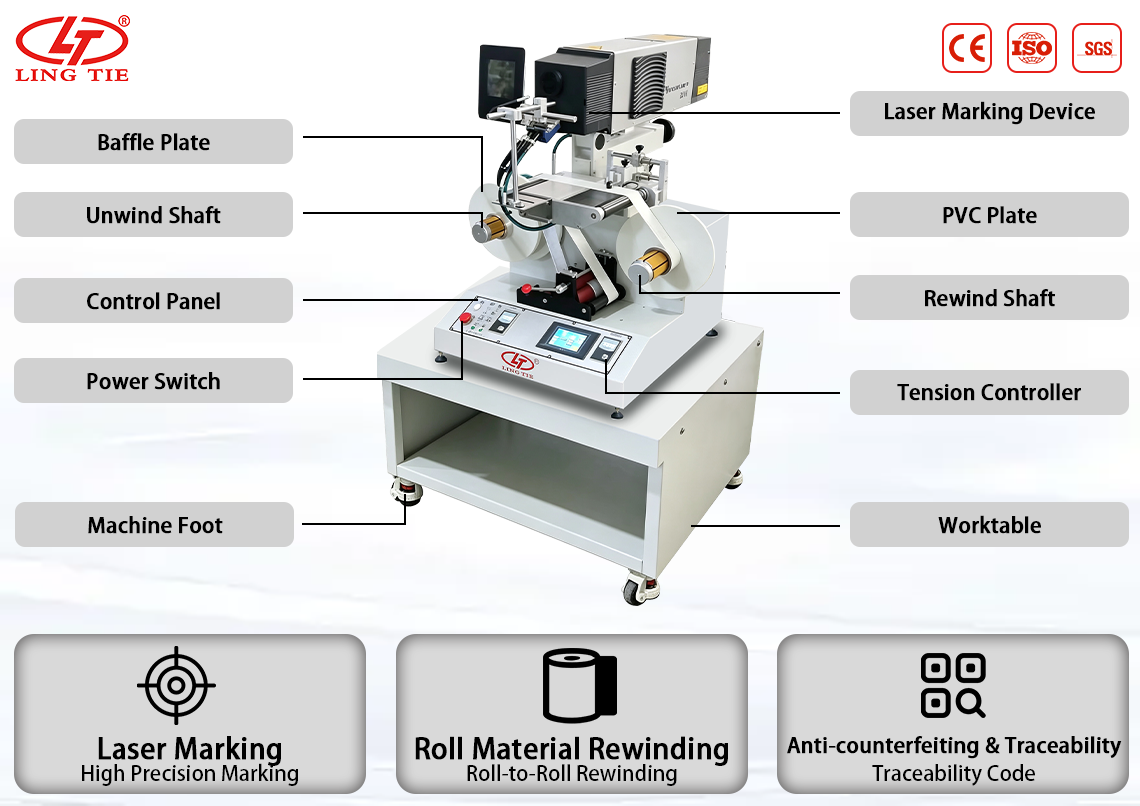

Core Structure & Component Description

Laser Marking Device

Adopts high-stability laser marking unit, supporting ultra-fine marking of QR codes, serial numbers, date codes, anti-counterfeiting patterns, with clear engraving effect, non-fading and wear-resistant marking content.
Unwind Shaft

Used to mount the original roll raw material, realizing stable automatic feeding of coiled materials during continuous production.
Rewind Shaft

Collects the marked finished material roll synchronously, achieving seamless roll-to-roll continuous processing without manual intermediate transfer.
Baffle Plate & PVC Plate

Position and fix the material path, prevent deviation of the film/label during conveying, guarantee consistent marking position accuracy for every single piece.
Tension Controller

Precisely adjust material tension in real time, effectively avoid stretching, wrinkling or deviation of thin flexible materials during high-speed operation.
Control Panel

Human-machine touch screen operation panel, intuitive parameter setting for marking content, marking speed, rewinding speed and counting function, easy to operate and quick to get started.
Power Switch

Main power control switch for the whole equipment, convenient for equipment startup, shutdown and emergency power cut-off.
Worktable & Machine Foot with Casters

Sturdy integrated workbench provides stable operation base; adjustable machine feet with movable casters support flexible equipment movement and horizontal leveling placement.

Three Major Core Advantages

✅ High Precision Laser Marking

Positioning marking with high accuracy, supports customized variable two-dimensional codes, anti-counterfeiting codes and batch serial numbers; the laser marking is permanent, not easy to erase or alter.

✅ Automatic Roll-to-Roll Rewinding System

One machine completes unwinding → laser marking → rewinding full automatic workflow, no need for separate rewinding equipment, greatly saving labor cost and improving production efficiency.

✅ Anti-counterfeiting & Full Product Traceability

Each product can be assigned an exclusive traceable identification code, which helps enterprises realize whole-process product information tracking, effectively prevent counterfeit and shoddy products, and standardize product after-sales management.

Certification & Quality Assurance

The machine has passed CE, ISO, SGS international authoritative certifications, stable mechanical structure, long service life, low failure rate, meets international production safety and quality standards, and is suitable for domestic production and foreign export procurement.

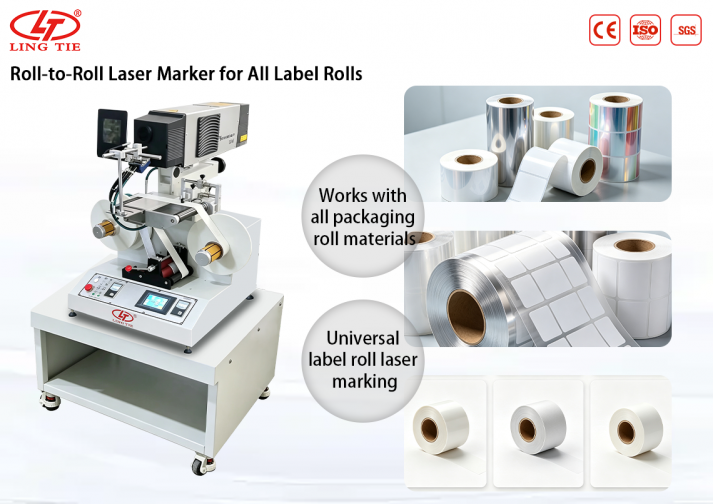

Main Application Materials

PVC rolls, PET films, adhesive label rolls, packaging composite films, insulating materials, sticker raw rolls and other various flexible roll-type substrates.

Key Selling Points Summary

All-in-one design of marking and rewinding, compact structure, save workshop space
Intelligent tension control, no material deviation or wrinkling during long-time continuous work
Visual operation panel, simple parameter configuration, low requirement for operators
Permanent laser marking without ink consumption, zero consumable cost in the long run
Movable casters plus adjustable support feet, convenient for workshop layout and equipment displacement
